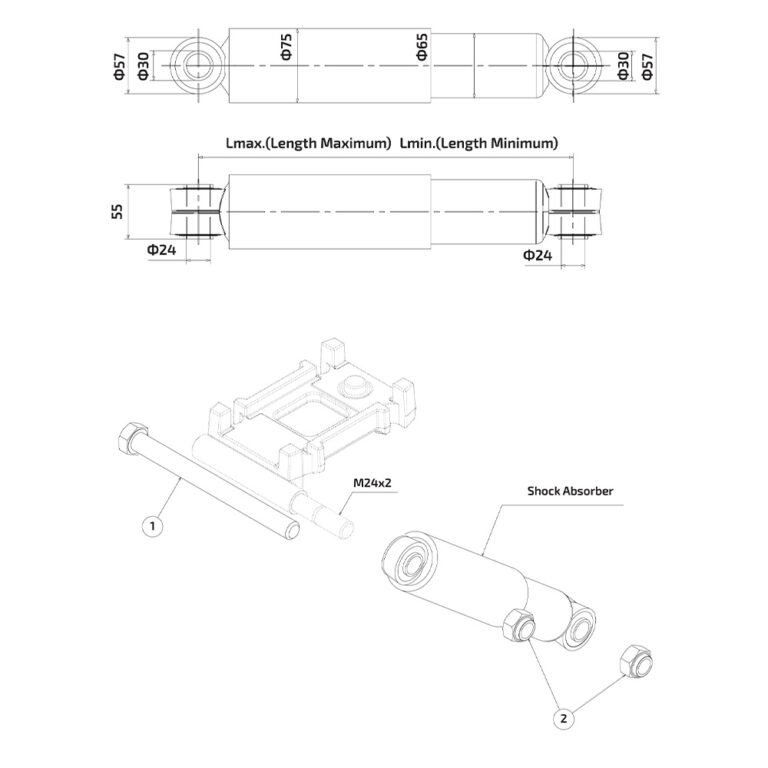

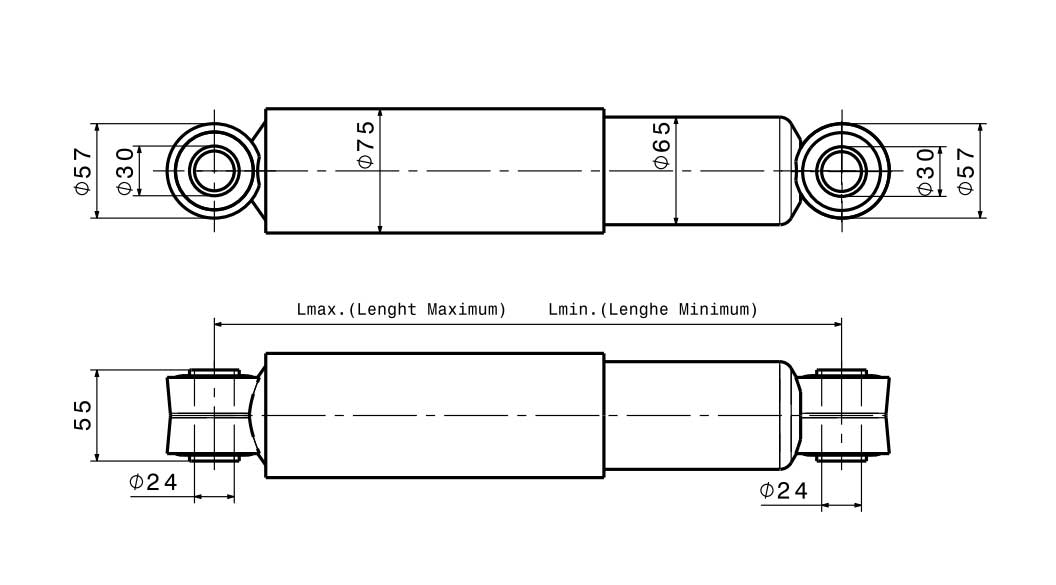

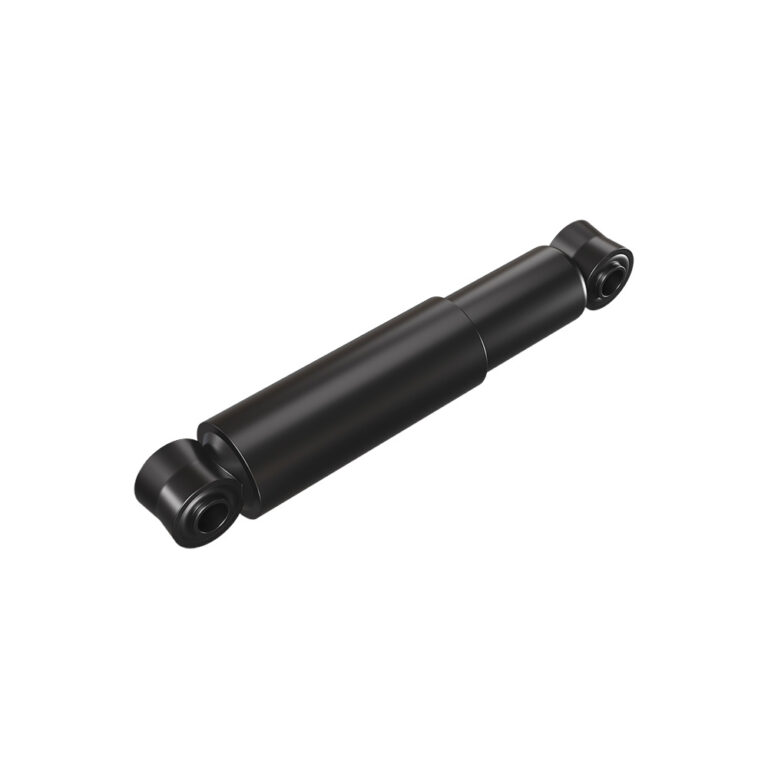

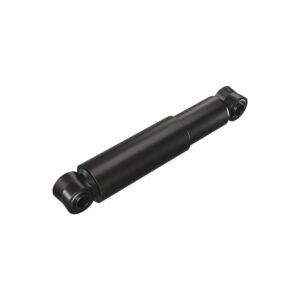

Shock Absorber
Product info
| Type | Product No. | Lmax (mm) | Lmin(mm) | Stroke(mm) | Item | Part name | Product No. | Technical characteristics |
|---|---|---|---|---|---|---|---|---|
| 5517 | 21990010036 | 495 | 325 | 170 | 1 | Screw (Hanger Bracket) | 23130110024 | M24 x 3 / L = 270 |
| 5519 | 21990010180 | 430 | 390 | 140 | 2 | Lock nut | 23140010010 | M24 x 3 / Sw36 |
Type
5517
5519
Product No.
21990010036
21990010180
Lmax (mm)
495
430
Lmin(mm)
325
390
Stroke(mm)
170
140
Item
1
2
Part name
Screw (Hanger Bracket)
Lock nut
Product No.
23130110024
23140010010
Technical characteristics
M24 x 3 / L = 270
M24 x 3 / Sw36
