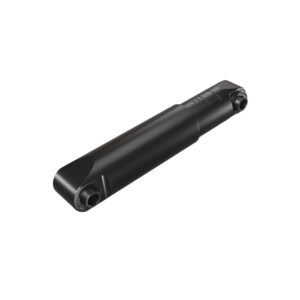

Shock Absorber
Product info

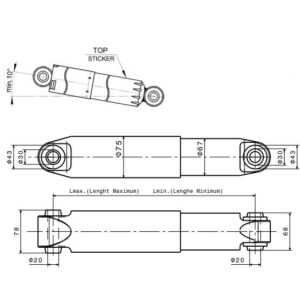

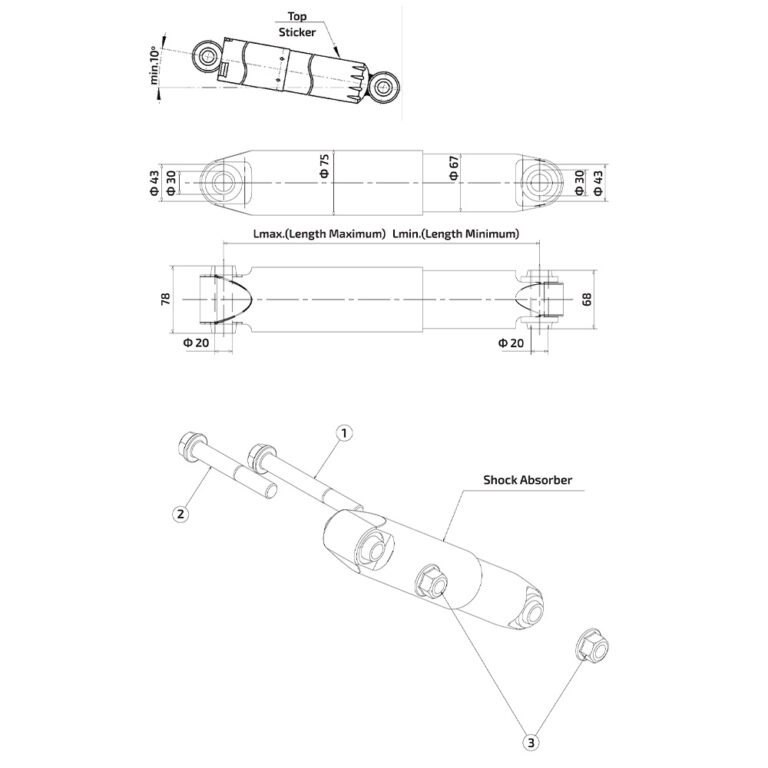

| Type | Product No. | Lmax (mm) | Lmin(mm) | Stroke(mm) | Item | Part name | Product No. | Technical characteristics |
|---|---|---|---|---|---|---|---|---|
| 5502 | 21990010076 | 413 | 278 | 135 | 1 | Screw (Intra Bolt) | 23110110006 | M20 x 1.5 x 160 |
| 5504 | 2190010054 | 491 | 315 | 176 | 2 | Screw (Hanger Bracket) | 23130110007 | M20 x 1.5 x 130 |
| 5506 | 21990010129 | 532 | 335 | 197 | 3 | Lock nut | 23140010005 | M20 / SW 30 |
Type
5502
5504
5506
Product No.
21990010076
2190010054
21990010129
Lmax (mm)
413
491
532
Lmin(mm)
278
315
176
Stroke(mm)
Plastic Piston
Plastic Piston
Plastic Piston
Item
1
2
3
Part name
Screw (Intra Bolt)
Screw (Hanger Bracket)
Lock nut
Product No.
23110110006
23130110007
23140010005
Technical characteristics
M20 x 1.5 x 160
M20 x 1.5 x 130
M20 / SW 30
